Automatic Crusher Mill for EVA, PVC and PE

Contact Now* Send an Inquiry to this supplier.
or
Start Order * Name your price

Contact us

SHIJIAZHUANG LONGXUAN TRADING CO., LTD
[China]

Address
Room 1905, Block C, Building 28, Fenghuangcheng, Ziweiyuan, No.2 Fangwen Road,Yuhuan District, Shijiazhuang Hebei
Phone
86-0311-86034128
Contact name
Liu Bin

Quick Information

  • Place of Origin: China

Description

16inch Automatic Crusher Mill

Advantage

1. The roller for the open mill is made of chilled casting vanadium & titanium alloy iron which is hard and wear-resisting, the surface hardness is above 70degree, the surface coating is about 15mm.

2.Hard tooth gear reducer with well-design structure, low noise, high efficiency and long service life.

3.Self-aligning bearing is well matching with the bearing inside leakage-proof device. The sealers are made of high temperature,wear, oil resistance material,which have very good sealing effect.

4.All main electrics are imported, the alternating current contactor is Shilin brand. The switch and button are Taiwan Tend brand.

5.Circulating lubrication system solves the oil leakage problem. The feature of this system is easy to maintain,easy to replace.

6.This mill machine is installed with overload protection device which protect the machine will not broken if the machine is overload. The machine will reverse 1/3 round when press the emergency stop button,which sure the production safety.

7.The [U" shape frame is whole set casting, but other factory welded together.

8.The machine base is welded by national standard I steel.

Main Parameter

A Automatic Crusher Mill Paramter

Front roller diameter (mm)(Smooth roller)

400

Rear roler diameter (mm)(Groove roller)

450

Roller length(mm)

840

Front roller speed (m/min)

12.67

Speed ratio

1:1.63

Max roller gap(mm)

10

Nip adjustment

Manual

Mixing capacity(kg)

20

Power (kw)

45-8

Motor RPM(r/min)

740

Reducer ratio

45

Reducer model

315

Roller bearing diameter(mm)

260

Bearing mode

352952YA

Bearing size(mm)

360×260×150



B Mixing Mill Paramter

Front roller diameter(smooth roller)

400

Rear roller diameter (mm)( smooth roller)

400

Roller length(mm)

840

Front roller working speed (m/min)

19.36

Speed ratio

1:1.5

Max roller gap(mm)

10

Nip adjustment

hand movement (HM)

Mixing capacity(kg)

20

Power (kw)

37KW

Motor RPM(r/min)

980

Reducer ratio

45

Reducer model

315

Roller bearing diameter(mm)

260

Bearing model

352952YA

Bearing size(mm)

360×260×150



Name

Full sets crusher mill

output capacity(kg/h)

200

Power consumption (°/h)

55

Size (mm)

3400×4200×2300

Weight (kg)

15500

Worker needed

1-2


Public Equipment

1. Power: 380V,50Hz,60kw

2. Cooling water supply: 2kg/cm²   0.6cbm/min



Machine Structure

(1)Units

Machine base

Welded by national standard I steel and steel plate.

Machine frame

Carbon steel casting with thermal treatment.

Rollers

Roller is made of chilled casting vanadium & titanium alloy iron which is hard and wear-resisting. With special treatment to the inside, the temperature of roller surface will be even.

Bearing

SKF self-aligning bearing, CC model, which has long service life.

Bearing base

whole set casting

Leakage-proof device

Imported high temperature and wear resistance oil seal.



(2)Transmission drive

Main motor

It depends

Coupling

Main motor and reducer are connected by coupling.

Reducer

Hard tooth with precision processing.

Ratio gear

Front and back rollers are connected by ratio gear.

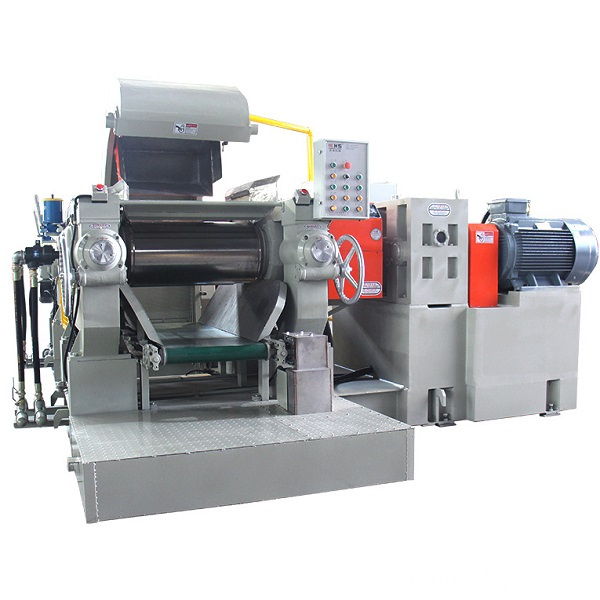

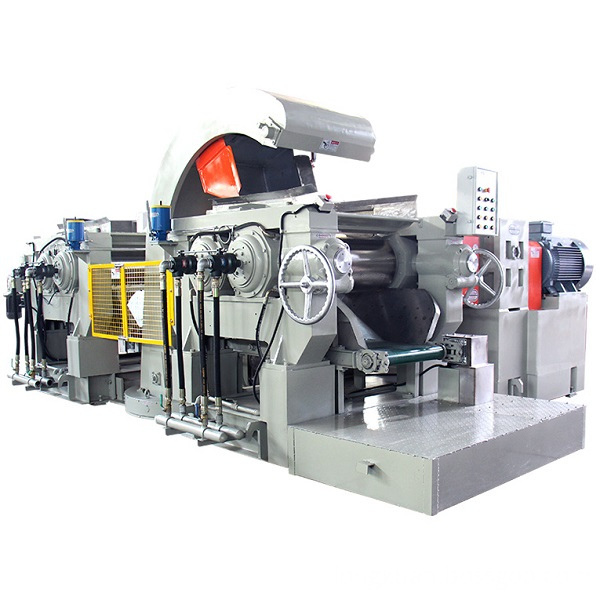

 Pictures of Products

Automatic Crusher MillAutomatic Crusher Mill 3Automatic Crusher Mill 4




Overseas service

The Factory inspection


Packaging & Shipping

 Packing and shiping1

About us

Shijiazhuang Longxuan Trading Co., Ltd. is located in Shijiazhuang, the capital of Hebei Province with convenient transportation. Our company was established in Feb. 2012. Our company is professional in supplying industrial equipment, covering pipe processing machinery, automatic welding equipment, cutting machine, etc. Our company always adheres to "credibility and integrity, efficiency" purpose and develops rapidly, creating excellent results and our company has fostered a good image in suppliers and foreign customers. And our company has established long friendly cooperative relationships with many high-tech machinery manufacturing enterprises.

Our company will continue to provide our clients with professional quality integrated solution in automatic welding, cutting and robot welding.

For further relevant product images or details,please send your inquire Details in the below,click "Send" or contact me directly!



http://www.longxuanmachine.com


Packaging & Delivery

  • Packing :Container packing of the 16 Inch Automatic Crusher Mill ;wooden case, container, or as your requirement.;wooden box or according to customer requests
  • Delivery Lead Time : 30
  • Minimum Order : 1

Product Image

  • Automatic Crusher Mill for EVA, PVC and PE image
